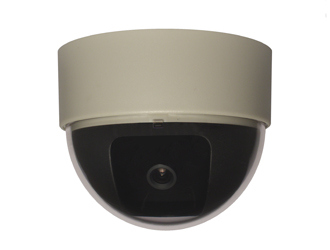

Colour CCD Indoor Dome Camera ADL-E1

Colour CCD Indoor Dome Camera ADL-E1
Code: ADL-21BE1-3.7
Description:
  • Indoor Dome Colour Camera
  • Compact and discreet
  • Ideal for use in Offices, Retail Stores, Banks, Schools and etc.
  • Wall- or Ceiling-mountable
  • 1/3" CCD technology
  • High resolution and high sensitivity
  • Fitted with fixed iris lens
  • Quick and easy Installation
  • Easy Viewing-angle Adjustment
Weight: 0.33 kg
Lens:
Image Sensor:
Power supply (offer price – just with Camera):

Features Benefits
Sony EX-View technology The adoption of Sony's new EX View CCD technology provides for improvements in basic camera features such as superb sensitivity, low smear levels and amazingly clear, and detailed images.



Specification
Model/Code NO. ADL-21BE1  ADL-25E1 ADL-26E1 ADL-27E1
Signal System  PAL, Colour
Image Sensor 1/3" Sharp CCD  1/3" Sony CCD  1/3" Sony CCD, EX-View technology  1/3" Sony CCD
Resolution 420TVL 480TVL 480TVL 520TVL
Minimum Illumination  1 Lux  0.1 Lux   0.01 Lux   0.5 Lux
Pixels  537(H)×597(V) 752(H)x582(V)  795(H)×596(V)
S/N Ratio >48dB
Electronic Shutter 1/50-1/100,000 Second
Video Output 1.0Vp-p,75Ω
White Balance  Auto Tracing White Balance
Scanning system  2:1 Internal
Sync system Internal
Power DC 12V, 120mA
Size  105x105x80mm

NOTE: Just currently stocked Cameras with specific Image sensors are available for selection.
