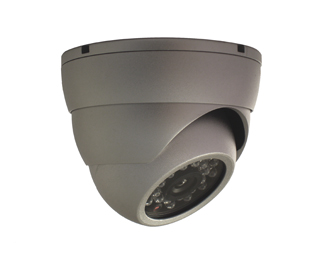

Colour CCD All in One Camera ADL-K1
Features | Benefits |
All in one camera | All in one camera - camera with Waterproof housing, lens and IR LEDs built in. This makes camera Installation: quick and easy. IR LEDs enables the camera to capture high-quality images during day and at night - making it perfect for 24-hour surveillance. Waterproof housing guarantees the reliable use of the camera: indoor and outdoor. All in one camera - the Practical and Cost-Effective Surveillance Solution. |
Ball-Joint Mount Technology | With the Ball-Joint Mount mechanism the Camera can be rotated freely in any direction. Unlike conventional cameras, it takes only one action to pan, tilt and rotate the camera, allowing for quick and easy adjustment of the camera’s viewing angle during installation. |
IP66 standard | IP66 means there is no ingress of dust and the equipment is protected against powerful water jets. |
Specification | |||
Model/Code NO. | ADL-21BK1 | ADL-25K1 | ADL-27K1 |
Signal System | PAL, Colour | ||
Image Sensor | 1/3" Sharp CCD | 1/3" Sony CCD | 1/3" Sony CCD |
Resolution | 420TVL | 480TVL | 520TVL |
Minimum Illumination |
1 Lux (0 Lux with IR Led’s) |
0.1 Lux (0 Lux with IR Led’s) |
0.5 Lux (0 Lux with IR Led’s) |
Pixels | 537(H)×597(V) | 752(H)x582(V) | 795(H)×596(V) |
S/N Ratio | >48dB | ||
Electronic Shutter | 1/50-1/100,000 Second | ||
Video Output | 1.0Vp-p,75Ω | ||
White Balance | Auto Tracing White Balance | ||
Scanning system | 2:1 Internal | ||
Sync system | Internal | ||
Power | DC 12V, 120mA (320mA - IR ‘on’ ) | ||
Size | 94x71mm |
NOTE: Just currently stocked Cameras with specific Image sensors are available for selection.
