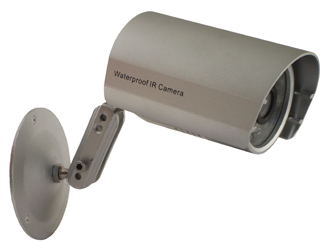

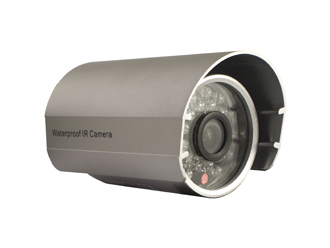

Colour CCD All in One Camera ADL-G3
 |
| Features | Benefits |
| All in one camera | All in one camera - camera with Waterproof housing, lens and IR LEDs built in. This makes camera Installation: quick and easy. IR LEDs enables the camera to capture high-quality images during day and at night - making it perfect for 24-hour surveillance. Waterproof housing guarantees the reliable use of the camera: indoor and outdoor. All in one camera - the Practical and Cost-Effective Surveillance Solution. |
| Unique double glass + metal ring Technology | Many of the on-market conventional infrared cameras encountered blurry images during infrared night vision surveillance. Why? Dust or raindrops in the camera front glass causes immediate reflection of the infrared light direct to the camera lens. A specially design unique double glass + metal ring Technology reduce interference and foggy problem. |
| Specification | |||
| Model/Code NO. | ADL-21BG3 | ADL-25G3 | ADL-27G3 |
| Signal System | PAL, Colour | ||
| Image Sensor | 1/3" Sharp CCD | 1/3" Sony CCD | 1/3" Sony CCD |
| Resolution | 420TVL | 480TVL | 520TVL |
| Minimum Illumination |
1 Lux (0 Lux with IR Led’s) |
0.1 Lux (0 Lux with IR Led’s) |
0.5 Lux (0 Lux with IR Led’s) |
| Pixels | 537(H)×597(V) | 752(H)x582(V) | 795(H)×596(V) |
| S/N Ratio | >48dB | ||
| Electronic Shutter | 1/50-1/100,000 Second | ||
| Video Output | 1.0Vp-p,75Ω | ||
| White Balance | Auto Tracing White Balance | ||
| Scanning system | 2:1 Internal | ||
| Sync system | Internal | ||
| Power | DC 12V, 120mA (320mA - IR ‘on’ ) | ||
| Size | 50x98mm | ||
NOTE: Just currently stocked Cameras with specific Image sensors are available for selection.
