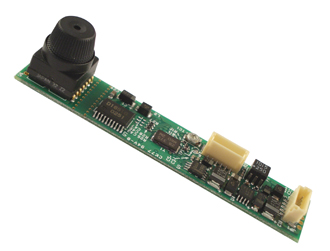

Ultra Mini Flat Colour CCD Board camera ADL-BC12P

Ultra Mini Flat Colour CCD Board camera ADL-BC12P
Code: ADL-BC12P
Description:
  • Ultra Mini Flat  Board camera
  • 1/4" CCD technology
  • High sensitivity: 0.5 Lux
  • Pin hole 3.7mm lens
  • Mirror Mode
  • Low Power Consumption
  • Perfect for projects,  where the size is matter


We can design and make application with this Camera at client request - just contact us.

Power supply (offer price – just with Camera):

0Specification
Model/Code NO. ADL-BC12P
Signal System  PAL, Colour
Image Sensor  1/4" CCD
Resolution 380TVL
Minimum Illumination   0.5 Lux
Pixels 510(H)×582(V)
S/N Ratio >50dB
Electronic Shutter 1/50-1/120,000 Second
Video Output 1.0Vp-p,75Ω
White Balance  Auto Tracing White Balance
Scanning system  2:1 Internal
Sync system Internal
Power DC 5V, 180mA
Board Size 61X12mm
